Multilayer Road Stabilization - Madain Saleh, Saudi Arabia

Multilayer Road Stabilization - Madain Saleh, Saudi Arabia

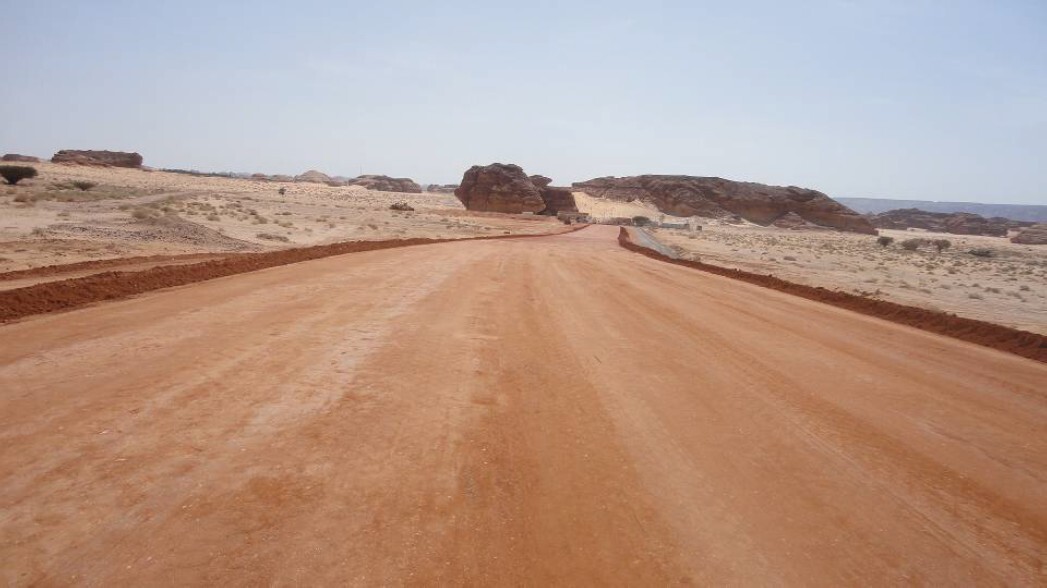

Project Description: T-PRO® 550 was used to construct a polymer stabilized unpaved road for visitor access to one of Saudi Arabia's UNESCO World Heritage Sites.

Project Objectives: Lithic Industries used T-PRO® 550 to create an access road to the best known archeological site in Saudi Arabia, located 300km from the city of Madinah. The objective of the project was to construct an all-weather road from locally available soil material and measure the improvement in engineering properties of the polymer stabilized road. The laboratory tested increase in CBR value between the polymer treated soil and untreated soil was 18%. The polymer treated soil also showed a 74% improvement over untreated soil in dry unconfined compressive strength (UCS). When tested for wet UCS values, the untreated soil, after soaking, had zero strength and became completely dissolved in the water bath. Soaked samples of soil treated with T-PRO® 550 polymer remained solid and had an average UCS of 471 psi. Terratech polymer technology was accepted by the Saudi Ministry of Works as a preferred road construction method for highly sensitive environmental areas such as this UNESCO World Heritage Site.


Equipment Used: Grader, Water Truck with Hose Attachment, 10-ton Single Drum Vibrating Compactor

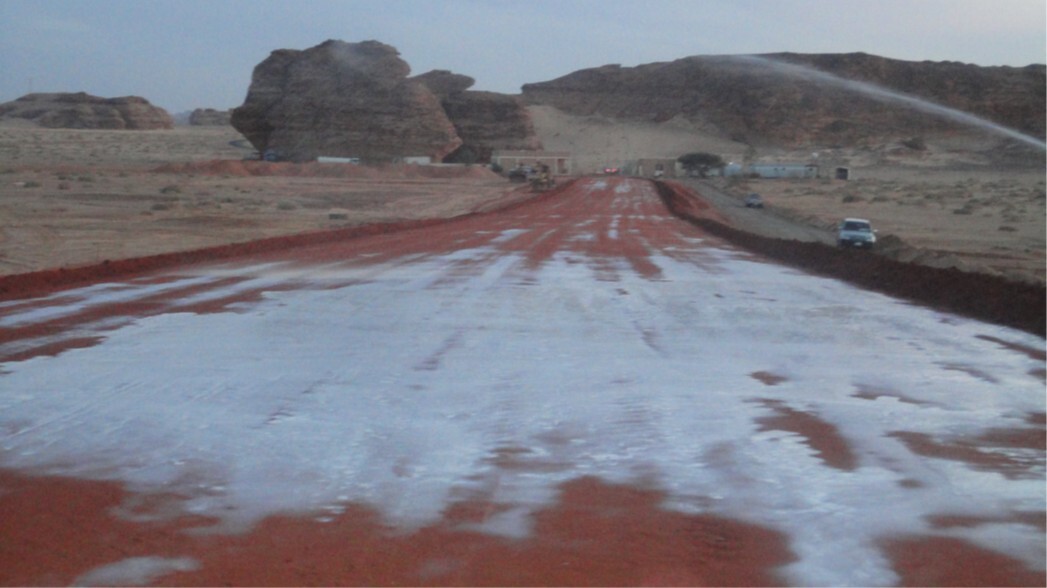

Application Specifications: Infused application with 0.75% polymer added and a topical seal coat at 100 ft2/gal coverage rate.


Maintenance Requirements: Removal of loose material and topical re-application of polymer, as necessary.
